Mining Mill

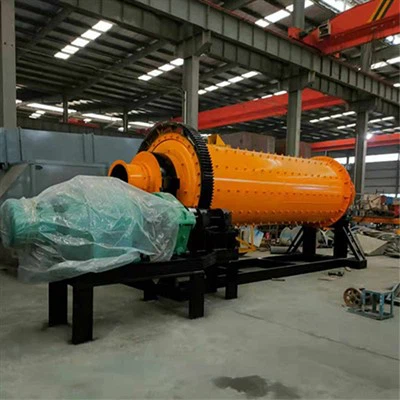

What is Grinding Ball Mill

A ball mill is a type of grinder used to grind and blend bulk material into QDs/nanosize using different sized balls. The working principle is simple; impact and attrition size reduction take place as the ball drops from near the top of a rotating hollow cylindrical shell.

First 12 Last 1/2

A mining mill is a machine used to grind ore into a fine powder. This powder is then used in a variety of processes, such as extracting minerals, making cement, and producing ceramics. Mining mills come in a variety of shapes and sizes, but they all work on the same basic principle.
The ore is first crushed into small pieces. This is done using a crusher, which is a machine that uses force to break the ore into smaller pieces. The crushed ore is then fed into the mining mill. The mining mill is a large rotating drum that is filled with grinding media. The grinding media can be steel balls, rods, or pebbles. As the drum rotates, the grinding media collide with the ore and grind it into a fine powder.The fine powder is then collected and used in the desired process.
Mining mills are an essential part of the mining industry and are used to process a wide variety of ores.
Here are some of the different types of mining mills:
Ball mills: Ball mills are the most common type of mining mill. They use steel balls to grind the ore.
Rod mills: Rod mills are similar to ball mills, but they use steel rods instead of balls.
Autogenous mills: Autogenous mills use the ore itself as the grinding media.

Advantages of Grinding Ball Mill

1. High grinding efficiency and low energy consumption

Grinding ball mill has the ability to grind materials to fineness level of submicron and nano-scale. The high grinding efficiency is achieved through the advanced design of the grinding chamber, which provides an even and efficient grinding environment while minimizing energy consumption.

2. Versatility

The grinding ball mill can grind a variety of materials, including cement, pyrotechnics, ceramics, and many others. This makes it an ideal choice for multiple industrial applications.

3. Low maintenance cost

Grinding ball mill is easy to maintain and requires minimal maintenance, making it a cost-effective choice for industrial processes.

4.Safe and reliable operation

Grinding ball mill is operated under controlled conditions, ensuring safe and reliable operation. The system is designed with safety measures to prevent any risk of explosion or equipment damage.

Why Choose Us

Professional team

From project design installation and training to ongoing maintenance and repair, our team of experts is dedicated to providing exceptional service and support to our customers.

Competitive price

We offering a higher-quality product or service at an equivalent price. As a result we have a growing and loyal customer base.

High quality

Our products are manufactured or executed to very high standards, using the finest materials and manufacturing.

24H online service

We try and respond to all concerns within 24 hours and our teams are always at your disposal in case of any emergencies.

Types of Grinding Ball Mill

Batch ball mill

A batch ball mill is a type of grinding machine used to grind materials into fine particles. It is used in mineral processing, ceramics, and paints.

Continuous ball mill

A continuous ball mill is a type of grinding machine that is used for continuous operations. It is used in chemical, mineral, and pharmaceutical industries.

Planetary ball mill

A planetary ball mill is a type of grinding machine that is used for mixing and grinding materials in laboratories. It is used in various applications like geology, metallurgy, ceramics, and pharmacy.

Vibratory ball mill

A vibratory ball mill is a type of grinding machine that is used for grinding and mixing materials for laboratory use. It uses vibrations to generate grinding force, and the grinding container is mounted on a spring to absorb shocks.

Material of Grinding Ball Mill

The grinding media are the balls, which may be made of steel (chrome steel), stainless steel, ceramic, or rubber. The inner surface of the cylindrical shell is usually lined with an abrasion-resistant material such as manganese steel or rubber lining. Less wear takes place in rubber lined mills.

Application of Grinding Ball Mill

Cement production

Grinding ball mills are used in the cement industry to grind raw materials, such as limestone, clay, iron ore, and coal, into cement clinker, which is the intermediate product used to produce cement.

Chemical industry

Grinding ball mills are used in the chemical industry to grind various chemicals and raw materials into fine particles. The particles are then used as raw materials for further chemical processing or as finished products.

Food industry

Grinding ball mills are used in the food industry to grind various food products into smaller particles. For example, grinding ball mills are used to grind coffee beans, spices, and other food products.

Pharmaceutical industry

Grinding ball mills are used in the pharmaceutical industry to grind drugs and other pharmaceutical products into fine particles. The particles are then used as raw materials for further drug processing or as finished products.

Components of Grinding Ball Mill

Feed and discharge ports

These are openings where the material to be ground is fed into the mill and where the finished product is discharged.

Grinding media

These are balls or rods made of various materials such as steel, ceramic, or rubber, which are used to grind the material inside the mill.

Motor

This is the power source that drives the mill, typically an electric motor.

Gearbox

This component is used to transmit the power from the motor to the mill.

Shell

The shell of the ball mill is typically made of steel and acts as a protective barrier for the internal components of the mill.

Liners

These are typically made of rubber or steel and are used to protect the shell of the mill and to provide a smooth surface for the grinding media to roll against.

Trunnion

This is a cylindrical structure that supports the ball mill's rotating assembly and allows it to rotate freely.

Bearings

These are components that support the rotating assembly and allow it to rotate smoothly. There are typically two types of bearings used in ball mills: sleeve bearings and roller bearings.

Maintenance of Grinding Ball Mill

01/

Lubrication Regular lubrication of the ball mill is essential to maintain its reliability and performance. Ensure that the lubrication system is clean and free of contaminants. Lubricate all bearings with high-quality oil or grease as per the manufacturer's instructions.

02/

Inspection Regular inspection and maintenance of the ball mill should be carried out. Check for any signs of wear, damage or misalignment of the components such as liners, girth gear, pinion, and bearings.

03/

Cleaning Clean the ball mill regularly to avoid buildup of dirt and debris. Use a vacuum or soft brush to remove any dust or debris from the mill and its components. Wash any contaminated surfaces with water and mild detergent.

04/

Adjustments Make necessary adjustments to the ball mill to optimize its performance. Adjust the speed of the mill, adjust the gap between the grinding balls and the mill liners, and adjust the mill's power to ensure optimal grinding efficiency.

05/

Replacement Replace any worn or damaged components promptly to avoid further damage to other parts of the mill. Consider replacing worn or damaged parts as soon as possible to prevent downtime and costly repairs.

06/

Troubleshooting In case of any issues or problems with the ball mill, diagnose the root cause of the problem and take prompt action to resolve it. Keep a log of any problems encountered and their solutions for future reference.

Certifications

productcate-683-449

Our Factory

The company is a large-scale integrated supplier dedicated to technical design, equipment manufacturing, installation services, and operation services.

productcate-987-536

FAQ

Q: What is the grinding process in ball milling?

A: Ball milling is a grinding method that grinds nanotubes into extremely fine powders. During the ball milling process, the collision between the tiny rigid balls in a concealed container will generate localized high pressure. Usually, ceramic, flint pebbles and stainless steel are used.

Q: What is a grinding ball used for?

A: Grinding balls are used to grind materials into fine powders. It is used to mix materials such as chemicals, paints, ceramics, and ores.

Q: What is the purpose of a grinding mill?

A: A grinding mill is a tool that is designed to break a solid material into smaller pieces. There are many different types of grinding mills and many types of materials processed in them.

Q: What is the difference between a grinding mill and a ball mill?

A: Grinding can be carried out wet or dry, but the former is performed at low speed. Ball mills are used often in scientific work to reduce the particle size, eliminate agglomeration, change the shape of particles, provide for mechanical alloying, mixing, producing powders and changing materials properties.

Q: What is the process of grinding?

A: Grinding, also called surface grinding, is a machining operation in which material is removed using a powered abrasive wheel, stone, belt, paste, sheet, compound, etc. to realize fine finish tolerances and surface finishes.

Q: Is a ball mill used for fine grinding?

A: Ball mills are employed in the comminution stage as grinding machines (size reduction). The purpose of grinders in the mining industry is to reduce the feed material size in order to liberate the minerals from the barren rock. Ball mills are the most common grinding machine employed in the mining industry.

Q: Which is better rod mill or ball mill?

A: If the material needs to be ground to a very fine consistency, a ball mill may be the better choice. On the other hand, if the material can be ground to a coarser consistency and a higher capacity is required, a rod mill may be the better option.

Q: What is the efficiency of ball mill grinding?

A: We can then define the grinding efficiency of a ball mill as the ratio between the specific grinding rate of the coarse solids in the ball mill and the grinding rate (grindability) of the ore in a standard laboratory mill.

Q: What is RPM in grinder

A: RPM = Revolutions Per Minute; defined as the number of complete axis turns per minute. SFPM = Surface Feet Per Minute; defined as the distance any one abrasive grain on the cutting surface travels per minute. Grinding wheel speeds are generally given in SFPM while machine speeds are usually noted in RPM.

Q: What size is a ball mill grinding?

A: The standard particle size of ball mill grinding varies depending on the ore and the process used, but it typically ranges from several micrometers to several millimeters. The final product particle size is often controlled by the size of the grinding media and the duration of the grinding process.

Q: Who uses ball mill?

A: The size of the final product depends on the speed of rotation, the number and size of the grinding media, and the type of material. Ball mills are widely used in various industries, such as mining, cement, manufacturing, ceramics, chemicals, pharmaceuticals, cosmetics, and more.

Q: What is the best material for a ball mill?

A: 304 Stainless Steel media for planetary and roller ball mills. 304 stainless steel is the most common type of stainless steel. 304 stainless steel grinding media balls have excellent corrosion resistance and abrasion resistance, and therefore have been widely used in many different grinding and milling applications.

Q: What is the correct speed of ball mill?

A: Ball mills have been successfully run at speeds between 60 and 90 percent of critical speed, but most mills operate at speeds between 65 and 79 percent of critical speed. Rod mills speed should be limited to a maximum of 70% of critical speed and preferably should be in the 60 to 68 percent critical speed range.

Q: Are ball mills wet or dry?

A: Wet ball mill is a kind of equipment which uses grinding medium and a certain amount of liquid (water or anhydrous ethanol) to grind materials. Unlike dry ball mill, wet ball mill adopts the wet grinding method. The characteristic of wet grinding is that the material needs to be soaked in the liquid for grinding.

Q: How many types of ball mills are there?

A: Different types of ball mill: attrition mill, horizontal mill, planetary mill, and the 1D and 3D vibratory mills.

Q: How do you calculate ball size for ball mill?

A: To calculate the balls needed in a ball mill, you need to know the capacity of the mill and the desired grind size. You can then use the following equation to calculate the number of balls needed: Number of balls = (Capacity x Grind size) / (385 x 0.1 x Surface area of ball in cm2).

Q: What are the balls in a ball mill?

A: Ball mills tumble iron or steel balls with the ore. The balls are initially 5–10 cm diameter but gradually wear away as grinding of the ore proceeds. The feed to ball mills (dry basis) is typically 75 vol. -% ore and 25% steel.

Q: How do you run a ball mill?

A: Operating a ball mill involves following steps: Fill the mill with the material to be ground, along with some grinding media. Start the mill by rotating the cylinder with a start-up drive. The cylinder rotates and grinds the material and the grinding media into a fine powder.

Q: How do you clean a ball mill?

A: The best way is to discharge the product first by ammonia to let dissolve it and then some solvent(like sodium laural suplhate+ alkokal) and does the ball milling for 2-3 min. Remove solution. Repeat and finally take out everything and clean with cotton waste soaked in solvent. Hope it is helpful for you.

Q: Which efficiency of ball mill is maximum?

A: Ball mills operate most efficiently between 65 percentage and 75 percentage of their critical speed .

We're well-known as one of the leading mining mill manufacturers and suppliers in China. With abundant experience, we warmly welcome you to buy high quality mining mill for sale here from our factory. For customized service, contact us now.Rod Mill Machine, Vertical Stirred Mill, Grinding Ball Mill
